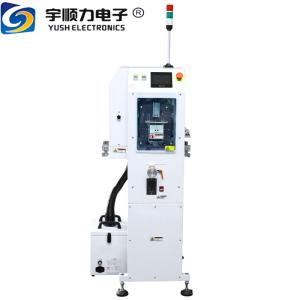

Automatic Touch Screen Control PCB Cleaning Machine
| Description | This unit is used to remove the foreign objects from the PCB surface. It can also eliminate the static electricity on of PCB |
| Belt Type | Antistatic Flat Belt of 8mm width |
| Cycle Time | Approx. 8 seconds |
| PCB Thickness | 0.6-4mm |
| Conveyor Speed | 0.5-20m/min or specify |
| Power Source | AC 220V, 50/60Hz, 1 phase |
| Power Consumption | 150W Max |
| Air Pressure & Consume | 4-6 bar, 10 l/min Max. |
| Specification | Units in mm |
| type | Single Side |
| Machine Dimensions(LxWxH) | 650x976x1380 |
| Effective PCB Size (LxW) | 80x80 - 530x460 |
| Weight (Kg) | 200 |
